Categorie: SUBRACK.
Subrack CPCI 3U 84TE Rear I/O 160/80.

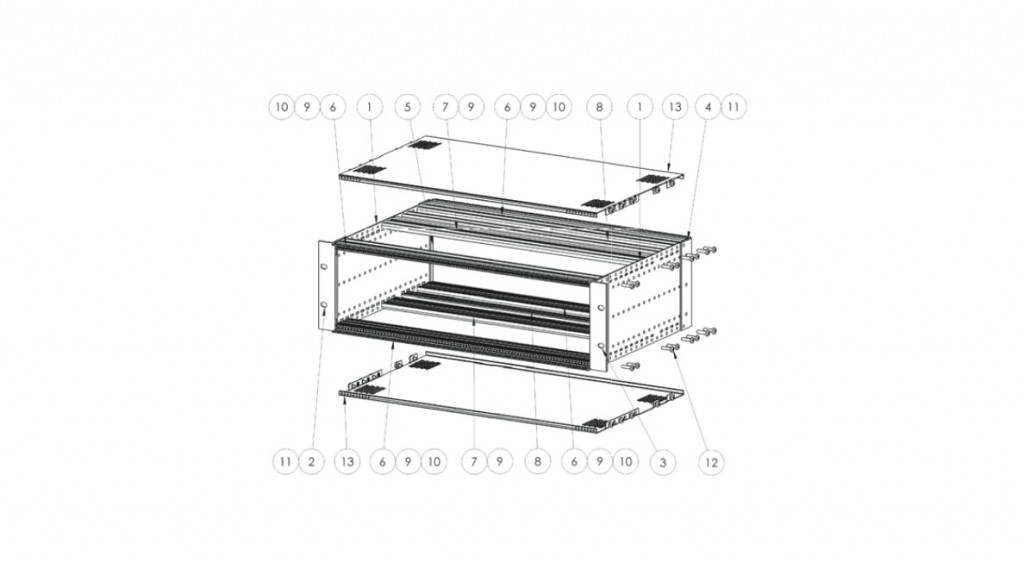

| B.O.M. | |||
| Pos. | Cod. | Descrizione | Q.tà |
|---|---|---|---|
| 1 | 120.001/123 01 | Side panel 3U Rear I/O 160/80 | 2 |
| 2 | 223.501/303 01 | Lateral bracket for gasket 3U | 1 |
| 3 | 223.501/003 01 | Lateral bracket 3U | 1 |
| 4 | 223.501/403 01 | Lateral rim for gasket 3U | 1 |
| 5 | 223.501/103 01 | Lateral rim 3U | 1 |
| 6 | 221.191/085C 01 | CPCI front crosspiece 85TE | 4 |
| 7 | 221.193/085C 00 | Back rear crosspiece 85TE | 2 |
| 8 | 221.197/085C 00 | Support crosspiece 85TE | 2 |
| 9 | 234.013/085 00 | Fastening bar M2,5 85TE | 6 |
| 10 | 634.110/016 | Contact strip crosspieces | 4 |
| 11 | 780.000/031 00 | Foam gasket 3,8x2,3 | 2 |
| 12 | 444.004 | Thread forming screw M4x16 | 32 |
| 13 | 081.503/713 01 | Top / Botton cover kit Ø4 Rear I/O | 2 |
